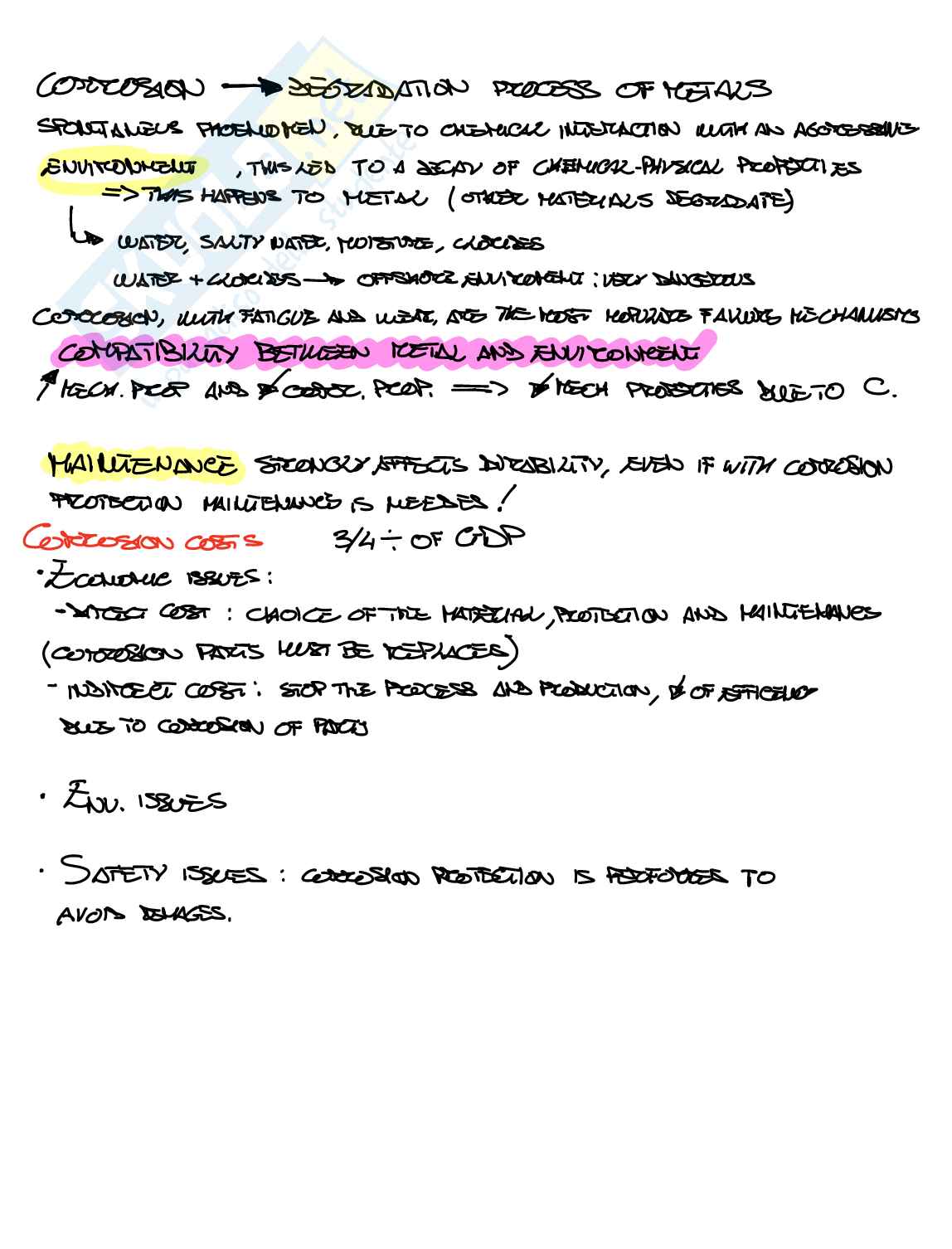

Materials and corrosion of offshore structers and equipment

corrosion 5 DEGRADATION METALS

PROCESS OF

spontanee proemoMEN aggressive

chemical interaction meth

Due an

to PROPERTIES

PHYSICAL

TO CHEMICAL

A

ENVIRONMENT THISLED DECAYOF

THIS OTLET

TO METAL

HAPPENS DEGRADATE

MATERIALS

La SALTYwater

water Chores

Moisture

COMITES

water OFFSHORE MOMENT

ENVI VETO

DANGEROUS

the Most Morale Mechanisms

parere

corrosion meat are

and

methFatigue METALAND

BETWEEN

COMPATIBILITY ENVIRONMENT

Ecotec

trace c

prop mech properties

prop 3 deto

and EVEN

MAINTENANCE STRONGLYAFFECTS IFWITH

DURABILITY CORROSION

PROTECTION MEESE

MAINTENANCE IS

Corrosion GDP

3 4 OF

costs

Economie issues

direct cost Maintenance

Material

the and

Protection

choice of

BE

MUST REPLACED

Paris

Corrosion process andProduction

indirect Stop

cosi the OF afficeno

corrosion

to

Due Party

Of

ENV ISSUES

Safety issues performed

Protection

corrosion is to

AVOID DEMAGES

Corrosion ANTI Process

METALLURG Il

D TO reduction

REFORM process

Peretz

MINERALS METALAS

THESE

FROM EXTRA

STABLE ME

STATES Al Fe ti

Al

Pes

Fe 203 203 mermouther STABLE

NOT

ARE

THESE From

Form POINT

THERMODYNAMIC

A OF VIEW

EF.it er

9

Corrosion preso OXIDATION

process

A BE

METALS METALS FOUND Form

NATURE

NOBEL IN METALLIC

IN

CAN

Pd

PEAU DON'T ABOVE

THE rue

AND FOLLOW

Corrosion Mortaiolo

General humor

corrosion libros

tuttlanuzar

LEANED Different Was

Corrosion oasi

Crevice

Points

SPECIFIC

present Nike

IN of Tte

Thickness

ANDTHE TRE

THROUGH

C GOES

PROCESS

SMALLHOLES sonorous

mamma

DETO CORROSION Fragile

FAILURE IS

Classification mechanism

corrosion

of

Electrochemical Daofestiore Env

MT

corrosion

I Environment

WATER umidita

Form

nous into

in

3 DELEGMONTE ITEM

Chemical Dro

corrosion present

be

Water

or can

FOMM SUBSTANCES

GASEOUS I AGGRESSIVE

IN

2 WET Corrosion

a

questione

thermodynamics

1 occur

can corrosion

Au

DIF D Immodesto

M

I ptf login

2 RATE

WHICH

RIMETICAL IF ES

Metaurommettitéjàiriettitieespas

WATER Me

F ph 10

7

LATER

PASSIVATION Oy

depending From Environment

chances the

Ginette Faore Felon

titti s

ILiie

ÉTÉ.IE

Eq

Me BO LAVERS

COMPOSES

BUT THIS AVEZ

AS

ACTS A

HO

Hao Mem THAT PROTECESTESUMFACE

THE

ENVIRONMENT

FROM

FASTEI Fe304

I In

product protective

corrosion coating

aver

PASSIVATION

LAVER BEST SITUATION MAGNETITE

SOMEAMA

THICKNESS OF WELL ADESE

ITS

Me Protects

THE

MATERIAL one in

stable

is SABLE

ALCALINE ONN

ENVIRONMENT

Ho condition concrete

Iron

strict in

Bars

in

M

M DIFFERENT

TWO CORROSION

PRODUCES

stmeolstenont

FCarbon decanta a pulyfic

SILVERTMOSIUMBATHAFONDATION

ATMOSPHERE

IN A

CLO

0.054 2

C 0.2

PANIZ

CONCHETEPWATER

FRESH SETHE PASSIVATION

NE SONT

WHOM OF

GESTO Formation

The paleruston

we

Laver if

MAGNETITE SELF THE

PROTECTION BAY

REINFORCEMENT

AMUSE pila

IF

BARS EVEN

CLEANED

MUST BE Ninfea

Corrosion TATE Thickness Frontze

host meta

Nim sti

smentite 125

MAMME ENV TEETESENE

N

Corrosion Process ma

Io water

corrosion

met HUMIDITY

LUIGI GALVAN

GALVANIC B

CELL AND

DANIELA OCCUR

COUPLES

CELL SAMERATE

mette

dzmhze

RESPECTIVEMETAL

WATER Zm

T SANT OF o cuh

zei

DCurdo .EE

lettre

à EI È

µ a

anos amen ma cathos

c Co

è

è TEMPSNE

Hao V20

Hao Hao 4

standard

ao

ce

Et Zi

so so

c

so so 9

Emoxtes E

DANOD

aaaa µjjÉ

CUMESUES LE

DCATOD 337

0

Deriso

The potential

and

tendineo bene cathode

a His

of

Potential me

of

the the

on µ

Standard POTENTIAL respect

ELETTOCHEMICAL AN

Dome in OF

MIXING ELEMENTS HYDROGEN REFERENCE

2 AS

HANOI

SMALLER

POTENTIAL OXIDATION IN

STANDARDCONDITION

catod

BIGGE POTENTIAL reduction Au

FPotentian D ELECTROCHEMICAL noble

NOBILITY most

DOX

Corrosion REDOX 7

reactions Anas a

7 anodic

and areas

catodico GALVANIC CELL

PROF

DEENSON SOLUTION

EM A THE HASBEEN

BAR

AFTER

t'either

EM DA

mod

DISSOLVES DEITZ

En é

Anos 2PM MIA

D

CAOS 2 8 BUBBLES

RICE THE

IS OXUDANT zia È

zmgp.ee è ha

2

I cathodic

potential

different area

of

impurities

Fe

Ni occurs

corrosion Also met FÉTIS impurities

its

Ex Due

se armato

corrosion pifferai

02

AI Areas

Covered cani

temi

è Fè

UNDID Fehangrefion 02 CAN'T

cori TEACH THEAREA

E Surace THE

ROTECTS SURFACE

fifties rosa Fenotipi

EI è TESOR Ì

zpetoa.it attori

arene 4 on Ke

PROF

TEDOX TELE

AFTER THE

OX REACTION

CANCHANGE

ENVIRONMENT AMSTEL

THE

IN

MM NN

Far

Terrestre Presence

toe of

to

see

OF current is

G

ENERGY GIBBS LE E

DE

A _MIA

G E ELECTIONS

OF

M NUMBER C

F contano9.65

Faraday 10

AG O D STATE

EQUILIBRIUM

IF AG Direction

OPPOSITE mot

Arrow spontaneo

so of

AG Corrosion La

SPONTANEA REACTION ISTHERMODINAMICA

o AE Eas Ea occurring

D

O

Generic reaction

chemical AD

toB A

A C

C

a CITA

E

AGO

AG RT B

A

ACI C

25

FREE ENEGO STANDARD

IN CONDITION

R 314

8

constant

gas k

T D C

R 25

TEMP 298 CITA

E

RT

MIALE MIALE B

A

CITA

EI E

E

A

AE NEST EQUATION

BIO

A

E SANSA POTENTIAL La Cmf

EXPRESSES of

The

CELL

ALTE INTERNS OFACTIVITIES

LE A

LEI

ALE LE LIM reactions

ProductsAND

OF

Laderens But

standard Also

Condition

the on

potential at

on

TEMP And Products Meactans

concentration of and

AEIEslfgLCILDJSMPZE

mers LA

AE EQUATION

BIO

Ei

Ec 0.05911

è

Ka E Enviongnwater

POURBAIX Diagrams KEEFFE

OH

E III

1.229 I ansie

4072110

0.8 je

poa.IE oy

ME m.gg

WATER S

STABLE DEPENSONTRERINI

Melodia

odjhize meta

pifferai

Me ha SI loghi

pre

Accame

E

Aad

o Basso

METAL WATER

ODGEN 12

49 04 10

SÒ

PREDUCTIONTEACTION LAYTON

F

GHWATER POMATE

Lamentato

KITTEN discharge reaction water

AH

26172

E è

a PH HIS

POT OF

STANDAR

gli

EEEE CHI

l concentration

Pure

a

P gg HE

I see

fategli 0059pm

IIANGOLARCOEFFICENT

E

28

b flat 0.82611

20

ph 204

20

E 32

HIGH

EI 18

LE ho

I 1.10472

0059

0.826 log 1

I 912

0.826 POH

ph 0826

0.82610.059 14 0.059pA

0.0826

I oostph STEFFIE

Ozreaction 2h20 Eos

4h LE V

pre Ort 229

c EEEE log 12494

I 0 4

229

a 81717

11.229 oggetti mostrando

ATMOSPHERE

IN

DHOW V

210 LE

02 45 0.401

PREF

d 04

È

EEEE pag 12

I

I Egon ph

0.401

0.401 0.059114

10

Ec 1.229 0059pm

OXIDATION

2 MEACTION

A PHE

MéIMe né reaction

ox

Easiest

Prodotta

1

Me

E

LI

LA log reso.at

Mej

lei Iaeenssneeonp EMemJ

ao'mof

oh log LECONCETTATION

Men Attore

BEGINNING

COME

OF PROCESS

b pH 7

Metto ordinamenti

Me Isaia

o.tt Corrosion

2420

Me

zoo

e pg produci

in 49

INDIA

IE 1 s

off log 49

I Dependance

0051 mph Eiffel ph

Methmpleo BMelobDintmk

c reaction

Eq

FOX REDOX

REACTION

NESTEA

NO

NO ELECTRONS

God'Pourbaix A NO Corrosion

Diagram SAME

4 PLATINUM

A

E AU 0M CATHODIC

AND

LA

OF ABOVE

ALWAYS POT

CATHODIC

THE

no corrosion

occur

can

Ha 14pA

POURBAIX 02

Diagrams 2420 4è

E LOR_

229

5 METAL

2h12 BEHAVIOUR

o l ha lo

Melon m a

Me PH

WATER DI

POURBAIX AGAM

2h20 4h

10 LE Aes

20 risme

II 1.229

LOS

AE EY login

AE

Nersey CHOY

1.229 A

Flog

I lo

1.229 gha ooseph

1.229

je tg

24720 log

AE È

ah f

a PM

059

o BUT

TEE 24 HAVE

THE

MES Are PARALLEL

DEFERENT INTERCEPT THE

OF VERTICAL AXIS

Al IDEENDANCE From

IONIC CONCENTRATION

Al and

Behaviour in

AMPHOTETIC acid

dissolved Vert

is

D BE BOTHANOSAND

CATHOD

ALCALINE

ENVIRONMENT Can

Al ph

Melma

AT

ISSTADE

DIFF BEHAVIOUR BE NOTE Change

UE

E

CAN Al Zm

BOTH AND

The CONCENTRATION

ICONE FATED

S COHETE WINDOW

METAL STABLE

TE IS FRAMES

metri

o NO

E AMPIO TETE FRESH CONCRETE

in Neutral ph

I POSSIBILI TO VS

BATS

Iron COVERED

EM MEINFORCED

WITH AS

For CONCRETE

PARTICULAR

SITUATION

Fe Pourbaix

Diagram about

rate

È Corrosion

AS CAMBON

ASSUMED

BE STEEL For

CAN ONNFÉEETÀ

Structural 0.25

use me

in

E

SHE

Ks Fesa OXA

FILM

Fe protetto

provide

g Can

229

0.771 Fez RUST

Peso

03 FOL

O MAGNETITE

Fet BASEEnvironment

in

LA concrete

Prese bar

Steel

peso

O.GE paranza aimes

IMMUNITY

I È ph

14

GGI

I Pure

OF

CONCENTRATIONS

Reactions ANERSEQUATION ASSUMED

Are

SUBSTANCES 1

BFF Eos Visite

Fe 0.44

20 Ox 409mF

E

FE Fe

Zè Nerstey

red DESERTO apply

LE

59

0

E

E gg FEI IDERENDANCE

I pH

From

Io

919 dHotuzomtaame

0.44 s o.ge LE Veste

4h20

37

1841

Febo 0.085

8C Fe bla

0059

Eo

E gg

8 LE 498

04

1 1

1

9

0 Farnace

Lg

0.085_ 1198

7 prompt

I Eh

0.085 0.08510

1 059pm

IIII 37746120

184 E

Fesso 098011mg

20 Fey so

Festoso omy

Eo_009

E 18 Efeso

1

1 LEI y

0.980_0 log Liga 1 6 DEPENDANCE

0.980 0.088410

0.2364pA prana

From

1 8.51 OF

0.2364pA CONCENTRATION

SPECIMEN

IONIC

IEZFEI3

TGMIZE IO Viste

Io

Fe20 0.728

Fé 10 6mg

fglio

0059

Eo

E gg

2 fero

pt

I Efe 1

59

0 fag

10.728 CHE 1

I o.lt ph

10728 o 059legIFe

1.082 0.1FFph

ÈZE

24728 0.22144

HO

31203 LE

04

Tea 2420

Eo_0059

E log

2 fero

pt

0.0597

0.22

Festtejet Eo isi.is

o.F

FILE

099

Eo

E

Esto EIE.CH

2fet 3420 spri

Egracion 0

Fey 10

415

Le O 100 LEI

28g 2

6891117

4,013

Fe LEI

2 1

pp e.gg

6 LINE

VERTICAL

PE

OXIDIZING Condition o

LE

reducing co

condition E

pH

acid Soana F

H

ALKALINE Sonetto P

AREAS

CLASSIFICATION

Io

BELOW soliste

5 D

Ol EONE

immunity

Direction of

PROCEED IN

reactions THE

2

Fe Fa

è

2

IONS

OF

REDUCTION 1

lo d E Iron

c

a METALLIC

m D

OXIDIZES THISZONE

IN Fefferrosion

in aqueous 8020

d K

f TON

METALLIC Fe

OXIDIZES THISZONE

e IN corrosion

g non

IN AQUEOUS

SOLUTION Felton

G F M corrosion

of

G Solution

AQUEOUS Ion

G

d E D

i

f Ferrous oxide

this

203 FILM

C oxide

Sonia Passivation

DEPRESSES THE OXIDATION PROCESS Passivation

E Ferrous Fe

oxide 04

C

M Send

P Moretti

Io Passivation

S Green

H

M drone rest

P SONS

Corrosion TATE Environment

on the

Strong DEPENS

BE ELEMENTS

ORSE

IN

FORECAST PROTECT

TO

ITMUST THE

Ferrosa rapida

Tate

LOCALIZE SIO

COMO Which

LES THE

TO Point

BREAKING

How Corrosion

The

Measure

to MATE

mefites Attack

consider uniform

D THE

DETERMINE OF WEIGHT

LOSS A LEI

THE wow

IN

MATERIAL Specific time

IN A

D DECREASING OF THICKNESS f Ifor

Noi F

e

a

Sme

EX STEEL WATER

CAMBON SEA

IN È

mold 25

NÉ 25 Se 8

II e

µg

25

TE I 25 10 8

g f

day

365

Day

100am

Io 0125mg sammy

LESION

FACTORS

CON Em Cu

For

mold the Conversion

Fa or

1 SMG

for III

FACTORISSIFFETENT

3 FOR

CLASSES METALS

CLASSY Nore E 50 Protection sistemava notte

ping ON Application

The

NEEDED

DETERS

Nora MY

1594

1 50

CLASS Grate STILLBETTER

TO

ADOPT

PROTECTION

SYSTEM

stare my

150 1500

class 2 µ a appreciable corrosion

TATE

PROTECTION

BE

SYSTEM

SHOULD

APPLIED corrosion

Or

ALLOWANCE DCI

CLASS my

1500

3 cores µ

EACHCLASS TEETOMECAST OF

AFFECT

CAN

MAINTENANCEPROC
